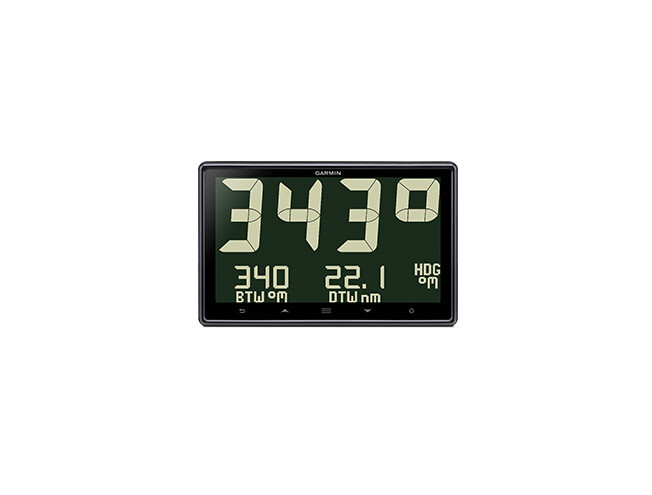

Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded 7-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.

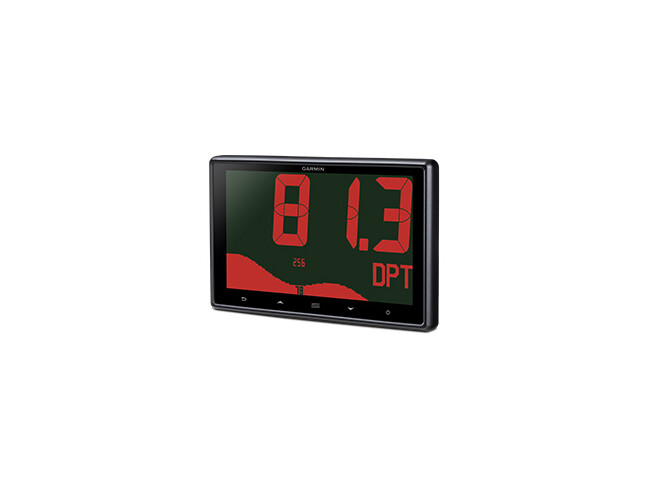

Enjoy superior readability in all conditions, day and night. Options for white or colour 2-inch (51 mm) digits — the largest in class — allow you to adjust for most preferred visibility setting for any lighting condition. The GNX 120 provides a flush mount glass mast look, and its glass-bonded high-contrast monochrome LCD display avoids fogging. Low power consumption of 0.36 W daylight with no backlight and 0.4 W nighttime with mid-level backlight preserves your batteries.

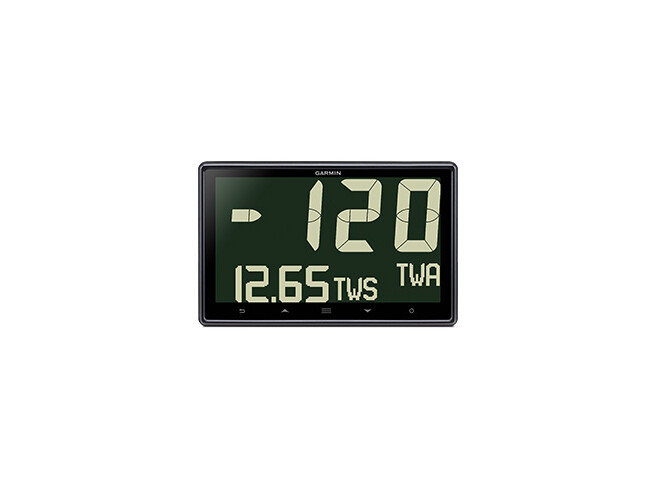

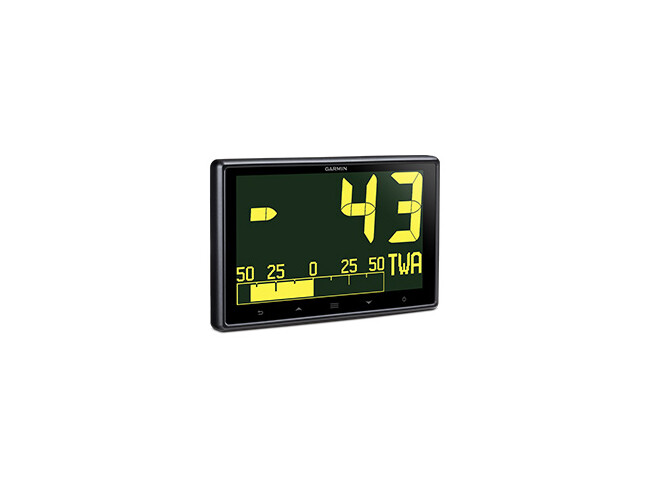

Fully customisable user profiles allow you to configure the screen layout to your preferred setting. Five display configurations are available: single, dual and triple function, plus Gauge and Graph modes, to display data for more than 50 important marine parameters for wind, sea and vessel conditions.
| Physical dimensions | 181 x 115 x 17 mm (7.12'' x 4.53'' x .67'') |
| Display size, WxH | 150 x 83 mm (6'' x 3.27'') |
| Display type | Inverted LCD, monochrome |
| Weight | 380 g (13.4 oz) |
| Water rating | IPX7 |
| NMEA 2000® certified | Yes |
| Power consumption | 0.36 W (day); 0.4 W (night) |
| Voltage range | 9-16 V (from NMEA 2000) |
| Mounting options | Flush |
| Glass bonded display | Yes |
| Temperature range | from -15° to 70°C |
Instrument Features | |
| Auto-on | Yes |
| User profiles | Yes |
