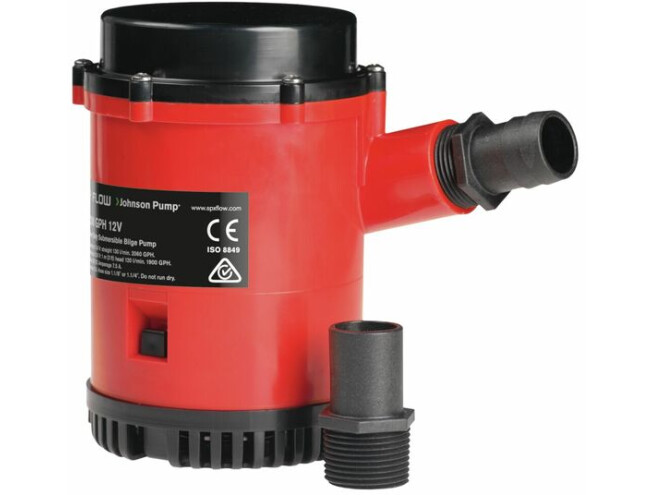

Designed to meet and exceed the tough demands of commercial and recreational duty. These pumps has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 GPH motor is sealed off by a mechanical seal design.
The impeller is carefully designed and tested to maximize head and flow. Universal base plate and a choice of two sized ports makes for a simple installation. Removable check valve included.
Shaft: SS2343
Wire size: 16 GA (1.3 mm2)
Wire length: 1.8 m – 6 ft
Max Ø: 108 mm – 4.25""
Max height: 177 mm – 7""
Weight: 2.25 kg – 4.96 lbs
Capacity 1.0 m head (13.6V/27.2V): 120 l/min – 1900 GPH
Capacity straight (13.6V/27.2V): 130 l/min – 2060 GPH
Amp: 7.5 A
Fuse Size: 12 A
Connection: 1⅛" and 1¼"
