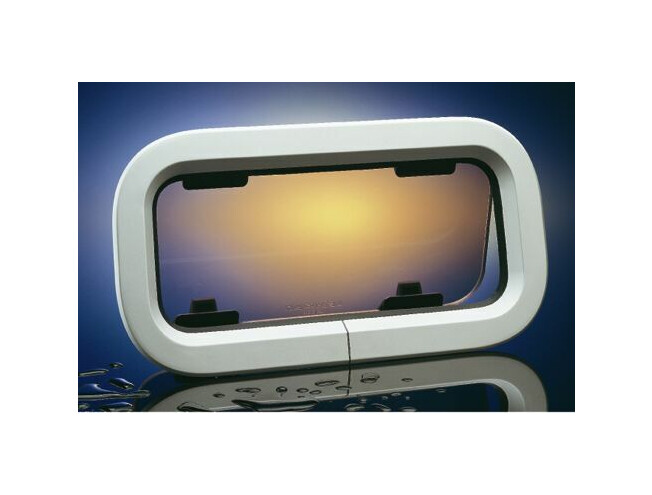

A perfect match for any hatch in the Lewmar range, the Lewmar Standard Portlight Size is stylish, competitively priced and easy to both use and install. This is a trusted product that is fitted to thousands of sailboats throught the world. Smoke / Silver White Trim.
• Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
• Can be installed with sealant or closed cell PVC tape
• White ABS Plastic Trim
• Supplied complete with flyscreen (except sizes 4L and 4R)
• Full range of spare parts available
• All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm
• Opening angle at 21mm hull thickness is 165°

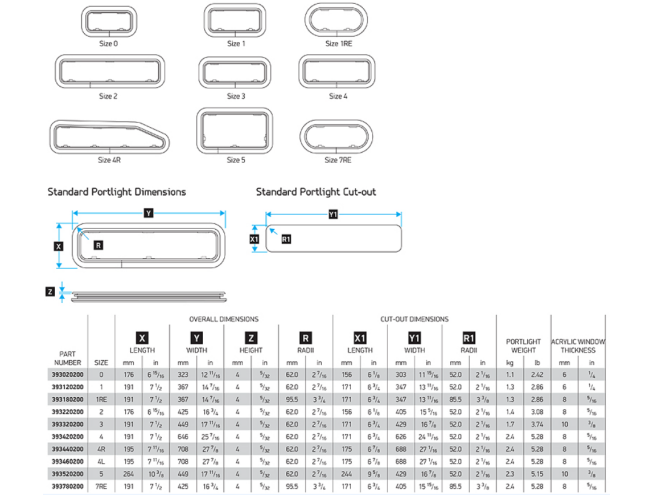

Specifications:
Size: 1
Opening model
Acrylic Window Thickness: 8 mm
Length X (mm): 191
Width Y (mm): 367
Height Z (mm): 4
Radii R (mm): 62
Cut-Out Length X1 (mm): 171
Cut-Out Width Y1 (mm): 347
Cut-Out Radii R1 (mm): 52
Hatch Weight: 1,3 kg
