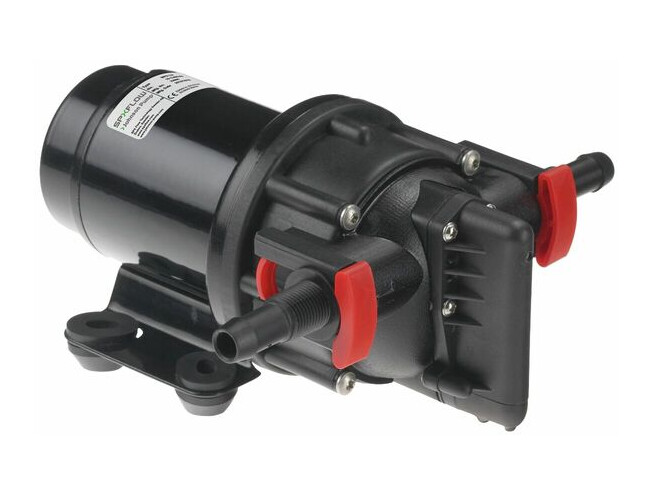

The five chamber Aqua Jet Water Pressure Pump (WPS) series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics.
It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.
Diaphragm: Santoprene
Valves: EPDM
Body: PP/PPA
Motor: 85W
Capacity: 11 l/min – 2.9 GPM
Pressure Cut Off: 2.8 bar – 41 psi
Fuse Size: 10 A
Connection: ⅜" BSP / hose ½", ½" BSP ¾" hose
Weight: 1.6 kg/3.5 lbs
Length: 204 mm/8.02"
Width: 197 mm/7.76"
Height: 110 mm/4.33"
